Description

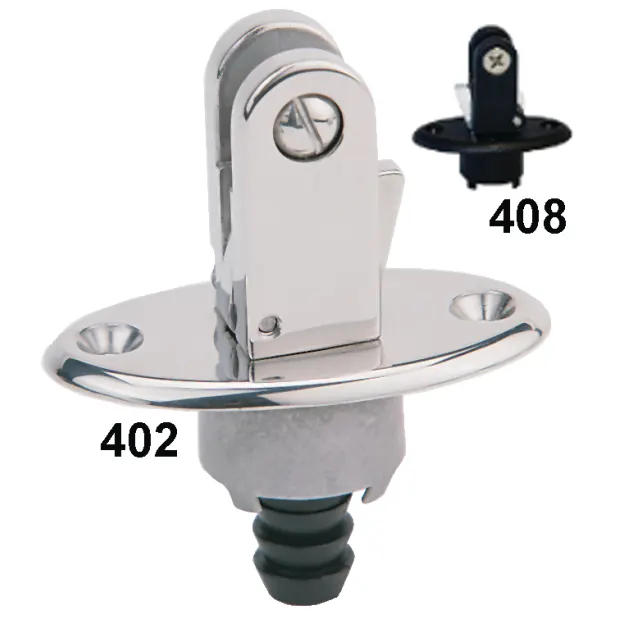

BIMINI QUICK RELEASE HINGE 402

• Flush-mounted hinge with quick-release mechanism, made from 316 stainless steel.
• You can easily remove or fit the top section without having to keep track of screws and pins.
• The hinge clicks into place in the base and remains attached to the bimini when it is detached.
• The adapter can be inserted in four different ways, at 90° angles to one another.

INSTALLATION

• To do this, a hole with a diameter of 1-1/8 inches must be drilled.
• If bleeding is required, remove the adjusting screw at the bottom of the coupling.
• Secure with two No. 8 countersunk screws.

DIMENSIONS

• 1.5 inches wide x 2.75 inches long
