TCI 122421 JOLLY US 32W 350,500,700

TCI DC Jolly US 1-10V push and dim multifunction LED driver 122421 dipswitch internally adjustable for different voltages and currents. LED current control 350mA 15W (12 LEDs), 500mA 24W (12 LEDs), 550mA 25W(12 LEDs), 700mA 32W (12 LEDs), 850mA 20W (6-7 LEDs) and 900mA 20W (6-7 LEDs) LED voltage control 10V DC 10W, 12V DC 13W,...

On backorder
€ 37,27

Item number: 185055

Packaging unit: Piece

Discount code:

Supplier article code: 0

EAN code: 6095513555523

  • Excellent service and advice
  • Free shipping from €200
  • 24/7 Ordering via the webshop
  • Ordered before 15:00, shipped the same day

Description

Description

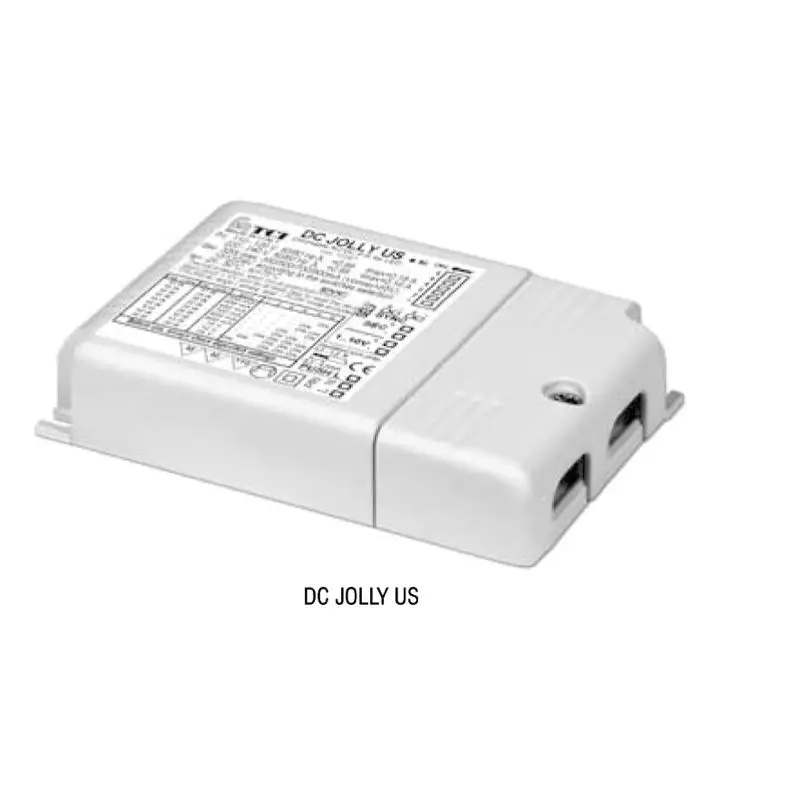

TCI DC Jolly US 1-10V push and dim multifunction LED driver 122421

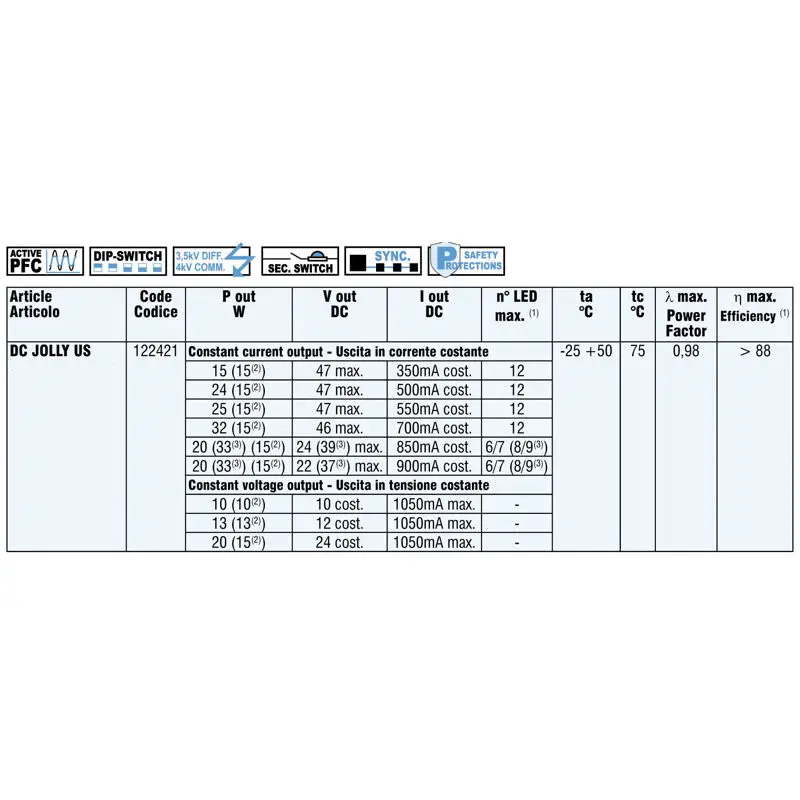

dipswitch internally adjustable for different voltages and currents. LED current control 350mA 15W (12 LEDs), 500mA 24W (12 LEDs), 550mA 25W(12 LEDs), 700mA 32W (12 LEDs), 850mA 20W (6-7 LEDs) and 900mA 20W (6-7 LEDs)
LED voltage control 10V DC 10W, 12V DC 13W, 24V DC 20W.
With syncronisation cable up to 10 can be interconnected 1 master and 9 slave controls.
For 230V input

Additional information

Additional information

IP rating

IP20
Watt

32W
Type

220V current
